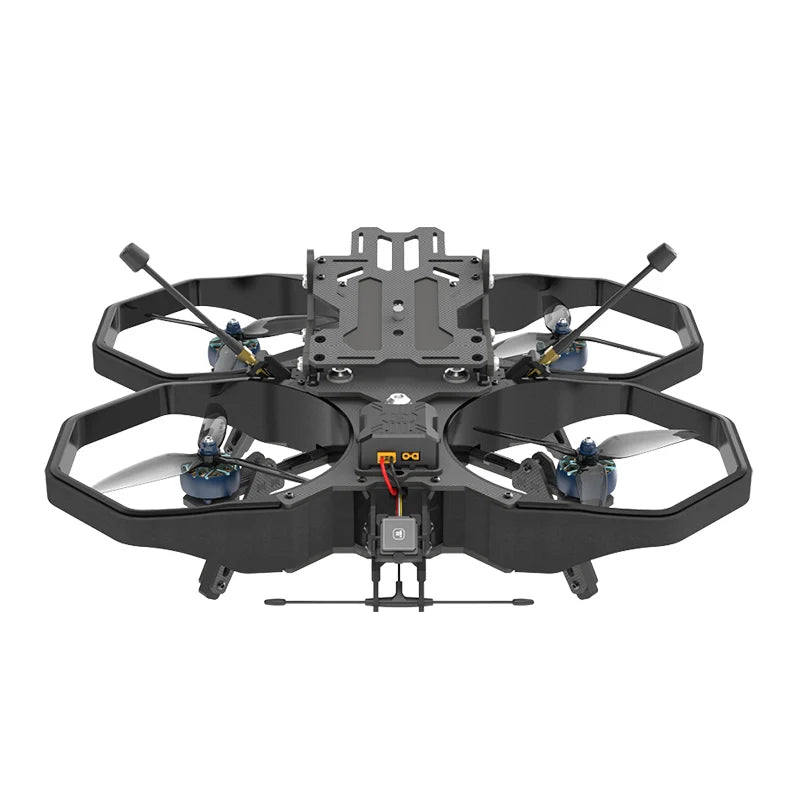

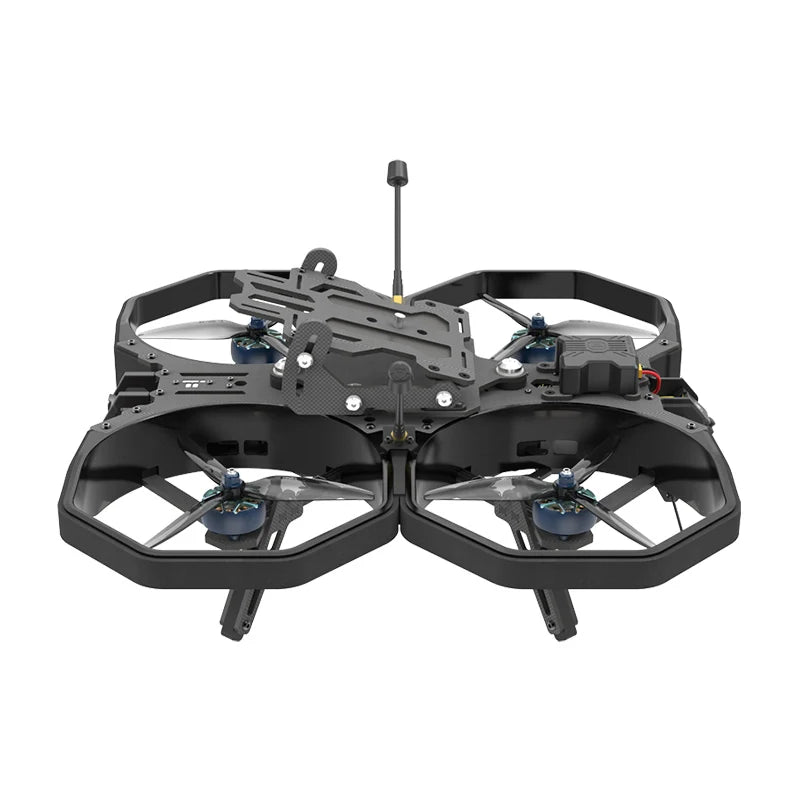

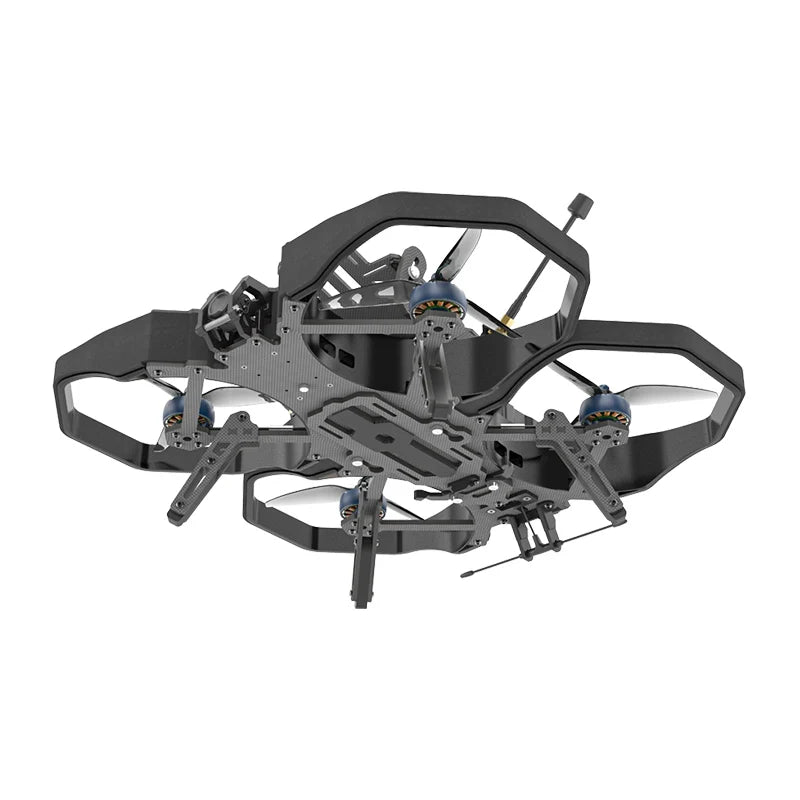

Iflight FPV ProTek60 Pro 6S HD Professional Film Action Cameras 27 m/s 1/3.2”Sensor 4K FULL HD DJI O3 Anti 155°Ultra-Wide Angle
Iflight FPV ProTek60 Pro 6S HD Professional Film Action Cameras 27 m/s 1/3.2”Sensor 4K FULL HD DJI O3 Anti 155°Ultra-Wide Angle
Couldn't load pickup availability
SPECIFICATIONS
Aerial Photography: Yes
Aircraf Operating Frequency: 2.4GHz
Angle of View[Horizontal FoV X°, Vertical FoV X°, Diagonal FoV X°]: D:155° H:125° V:96°
Brand Name: kasawabs
Camera Features: 1080p HD Video Recording,4K HD Video Recording,SLR Compatible,Mirrorless Interchangeable Lens Compatible,Dedicated Camera Compatible
Camera Integration: Camera Not Included
Category: Camera drone
Connectivity: Remote Control
Drone Battery Capacity: 4500mAh
Drone Weight: 1466±10g
Equipped with Aerosol Spraing System/Spread Tank Volume: No
FPV Operration: Yes
Flight Time: others
Fps: 60*fps
GPS: Yes
Main Rotor Diameter: 6 inches
Max Ascent Speed[m/s]: 6 m/s
Max Descent Speed[m/s]: 6 m/s
Max Flight Time: 5.5 minutes
Max Takeoff Weight: 3-4KG
Max Wind Speed Resistance: 10-20km/h
Maximum Altitude[m]: 5000
Maximum Horizontal Speed[m/s]: 27 m/s
Operating Temperature[°C]: -10to40
Origin: Mainland China
RTK Module（Real-time kinematic）: No
Removable/Replaceable Battery: YES
Sensor Size: 1/3.2 inches
Transmission Range: 10km
Video Format[Name/Type]: MP4
Video Maximum Resolution[Pixel X Pixel]: 4K（4096*2160）
Description
We've came a long way with action cameras, offering outstanding quality with little weight and a small footprint. But do you want to get professional or shoot some commercials, maybe get into cinema videography? Well, then you need to step up your game. Those cameras offer higher quality but bigger lenses, higher weight in exchange with all the dynamic range, color profiles and crisp footage you might possibly want.
Highlights
Protected Propellers for indoor and outdoor use, protecting whatever you might bump into from nasty cuts

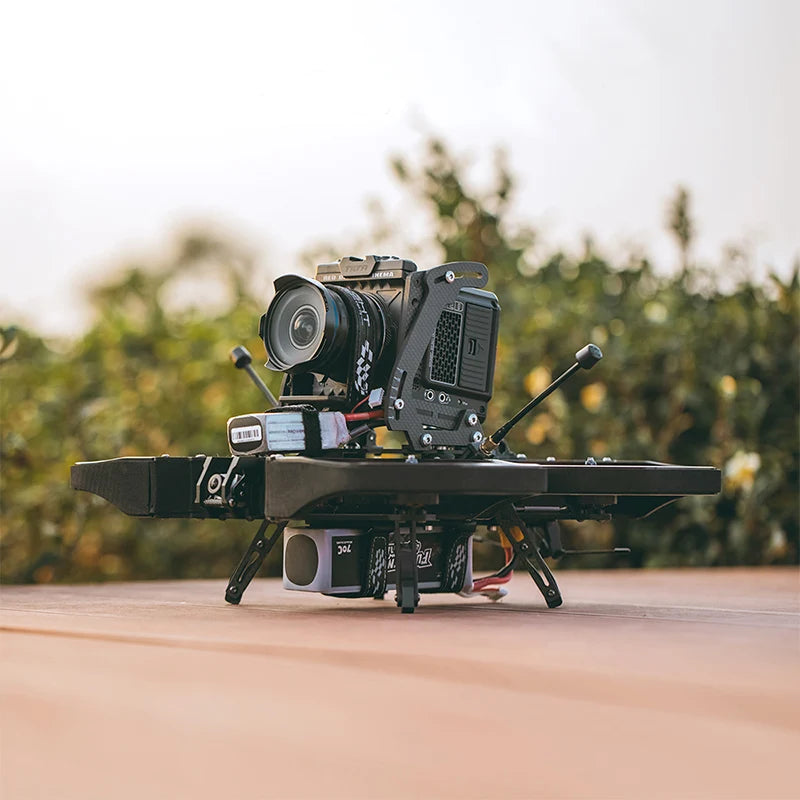

Universal camera mount and accessories for a wide range of cameras to install
iFlight ESC Commander PCB // Power distribution board with high capacitance and heat dissipation
Single X-Class grade ESC motor drivers for more power and reliability
Big size XING2 3110 // The power motors with extreme lift and flight performance
GPS module pre-installed (BF GPS rescue or INAV GPS RTH feature available)
Up to 110 km/h // 1.5 kg payload // Total lift off weight up 3.5 kg (recommended max. MTOW)
Changelog
June 12, 2023: The standard battery is changed to Fullsend 5600mAh 95C battery

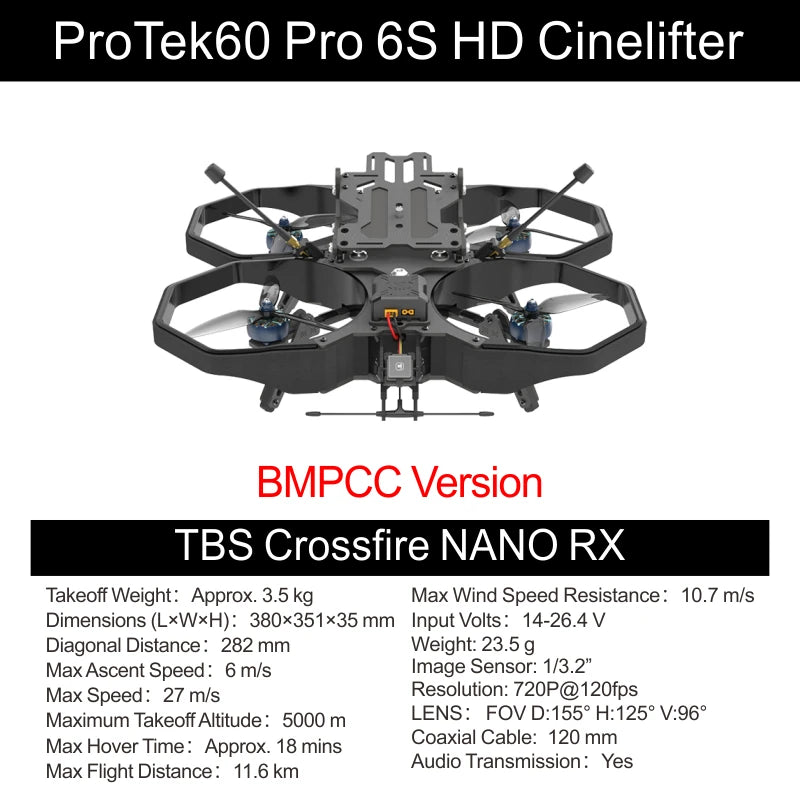

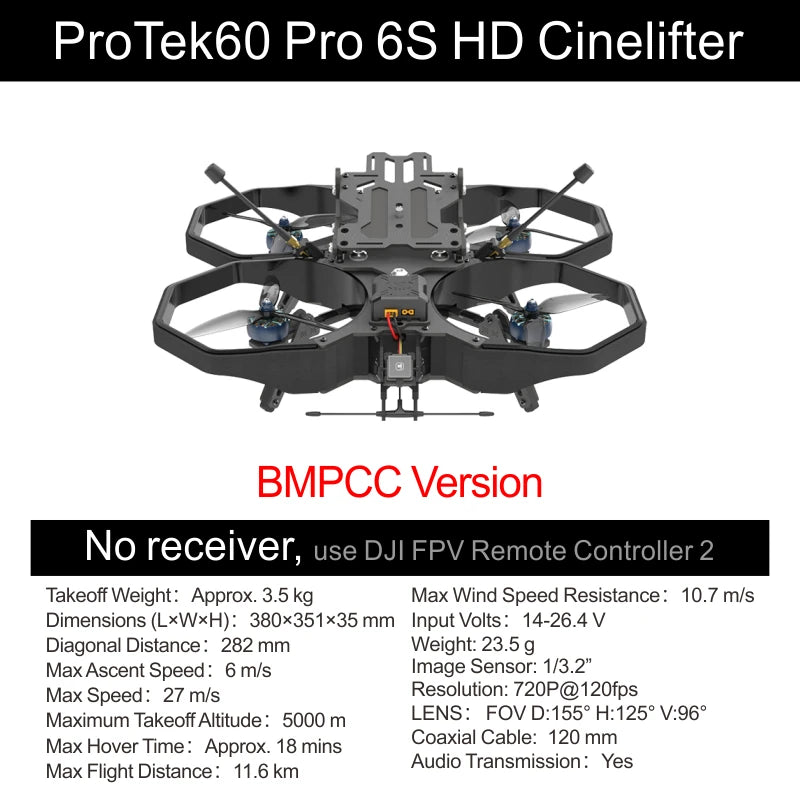

Specifications

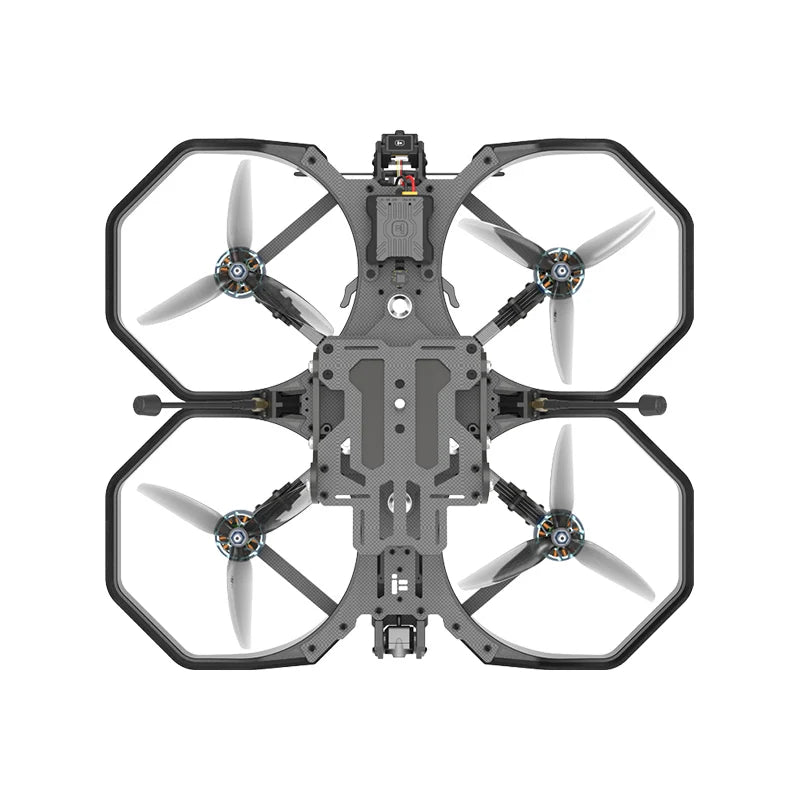

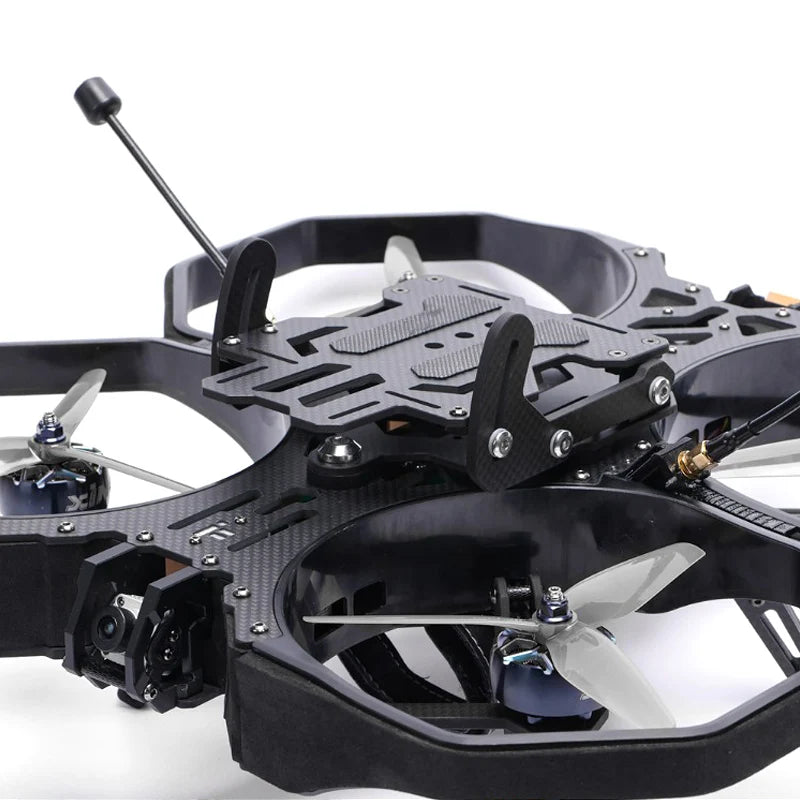

Product Name: ProTek60 Pro
FC: BLITZ F722 Flight Controller
ESC: BLITZ E80 Single ESC
Video Transmission: RUNCAM LINK Wasp
Frame: 282mm wheelbase
Motor: XING2 3110 motors
Prop: Nazgul 6x4x3 propellers
Weight：1330grams
Model：ProTek60

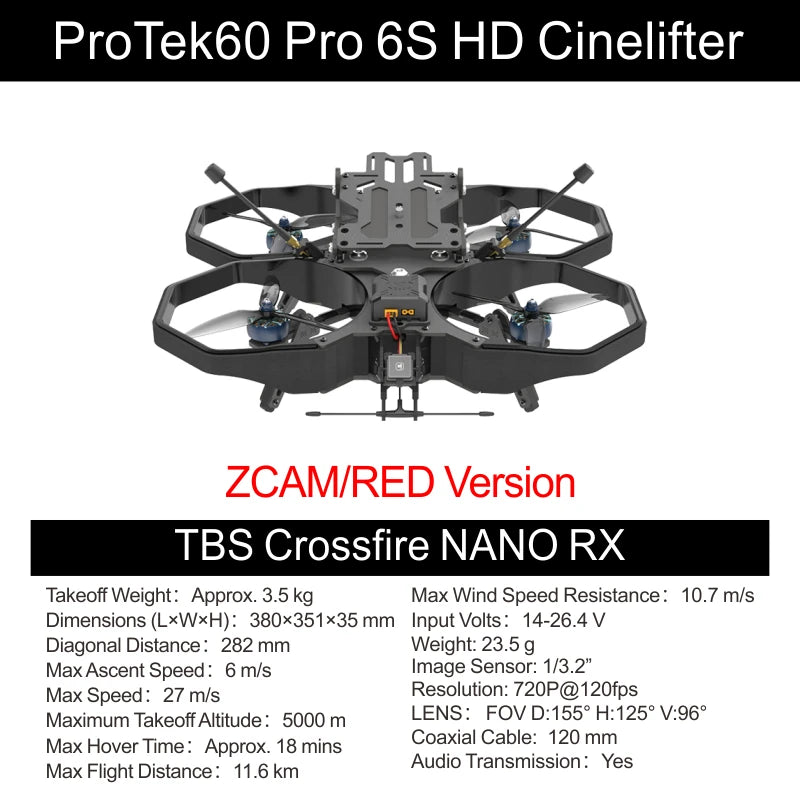

Takeoff Weight：Approx. 3.5 kg
Dimensions (L×W×H)：380×351×35 mm
Diagonal Distance：282 mm
Max Ascent Speed：6 m/s (Normal Mode, Sport Mode)
Max Descent Speed：6 m/s (Normal Mode, Sport Mode)
Max Speed：27 m/s (Manual Mode)
Maximum Takeoff Altitude：5000 m
Max Hover Time：Approx. 18 mins
Max Flight Distance：11.6 km
Max Wind Speed Resistance：10.7 m/s (Level 5)
Operating Temperature Range：-10° to 40° C (14° to 104° F)
Transmission Power (EIRP)：FCC: < 33 dBm / CE: < 14 dBm / SRRC: < 30 dBm
Antennas：Dual Antennas
GNSS：GPS + Galileo + BeiDou / Hovering Accuracy Range
Video Transmission
Product Name: RUNCAM LINK Wasp
FPV Cam :RunCam Wasp
Dimensions:
Runcam Link: L19mm*W19mm*H19mm
FPV Cam: L29mm * W29mm * H13mm
Communication Frequency: 5.725-5.85GHz
Transmission Power (EIRP): FCC/SRRC/MIC: <20dBm; CE: <14dBm
Input Volts：14-26.4 V
Weight: 23.5 g
Image Sensor: 1/3.2”
Resolution: 720P@120fps
LENS： FOV D:155° H:125° V:96°
Coaxial Cable: 120 mm
Audio Transmission：Yes

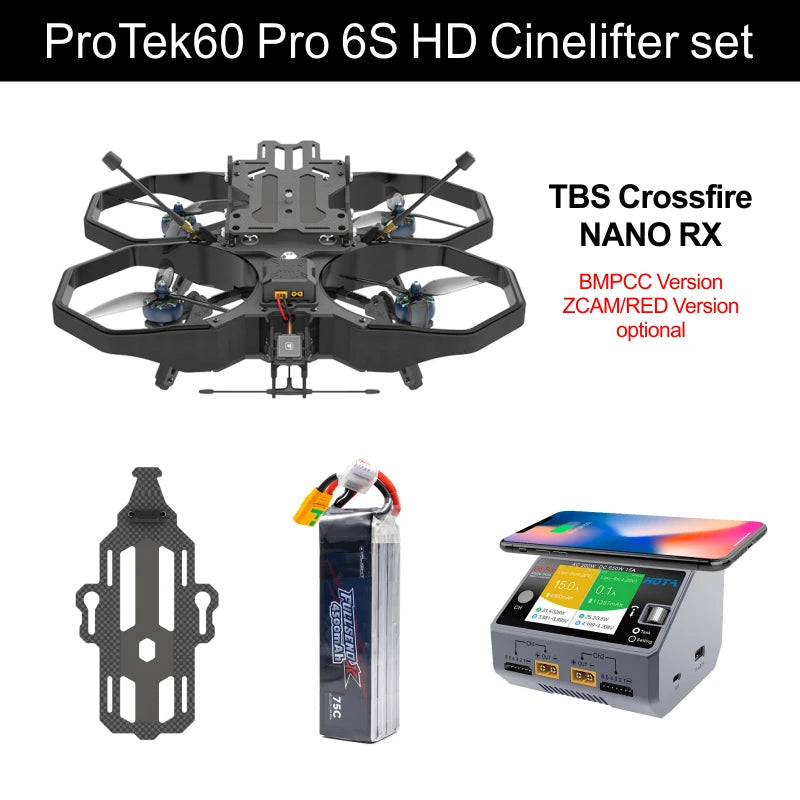

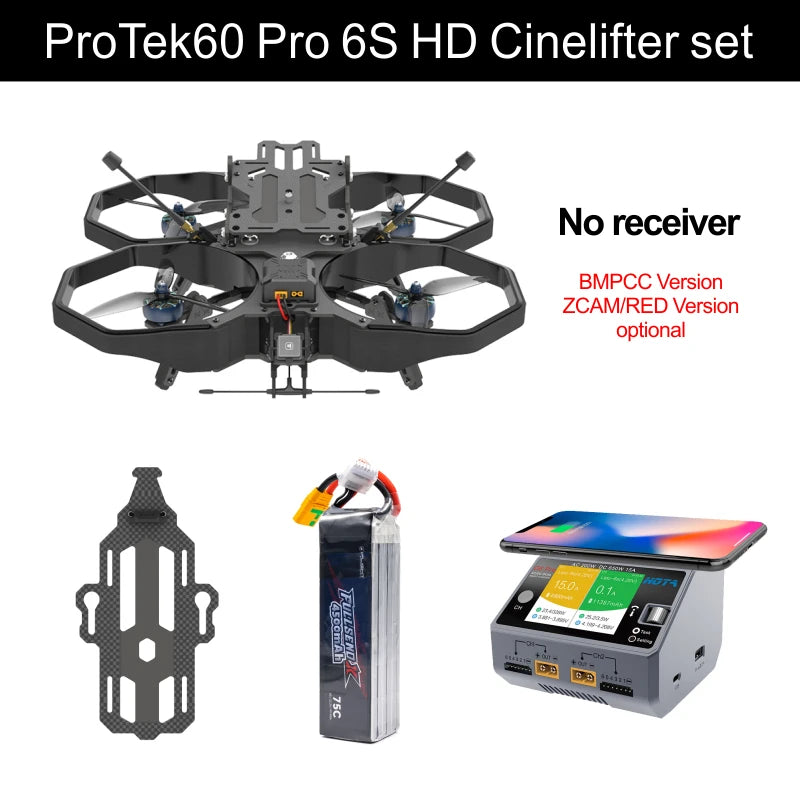

Packing List
1 x ProTek60
1 x Battery pad
2 x 6 inch Prop(Pairs)
2 x Battery strap
1 x Screw bag
