Micro Grid Tie Inverter 1200W with limiter,colorful LCD display Battery Discharge Mode Solar Panel Grid Tie Inverter

Micro Grid Tie Inverter 1200W with limiter,colorful LCD display Battery Discharge Mode Solar Panel Grid Tie Inverter

$204.67 USD
$0.00 USD $204.67 USD
Sale Sold out
Color
Output Voltage
Ships From|Input Voltage

SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: None

Hign-concerned Chemical: None

Is Smart Device: YES

Model Number: GTN1200LIM

Origin: Mainland China

Output Current: 5-10A

Output Frequency: 50/60Hz

Output Power: 500 - 1000W

Output Type: SINGLE

Size: 305*190*85 mm

Weight: 4.5

is_customized: Yes

1200W grid tie inverter with limiter battery discharge solar panel grid tie inverter





GTN1200---------1200W grid tie inverter but NO AC Meter NO clamp sensor;

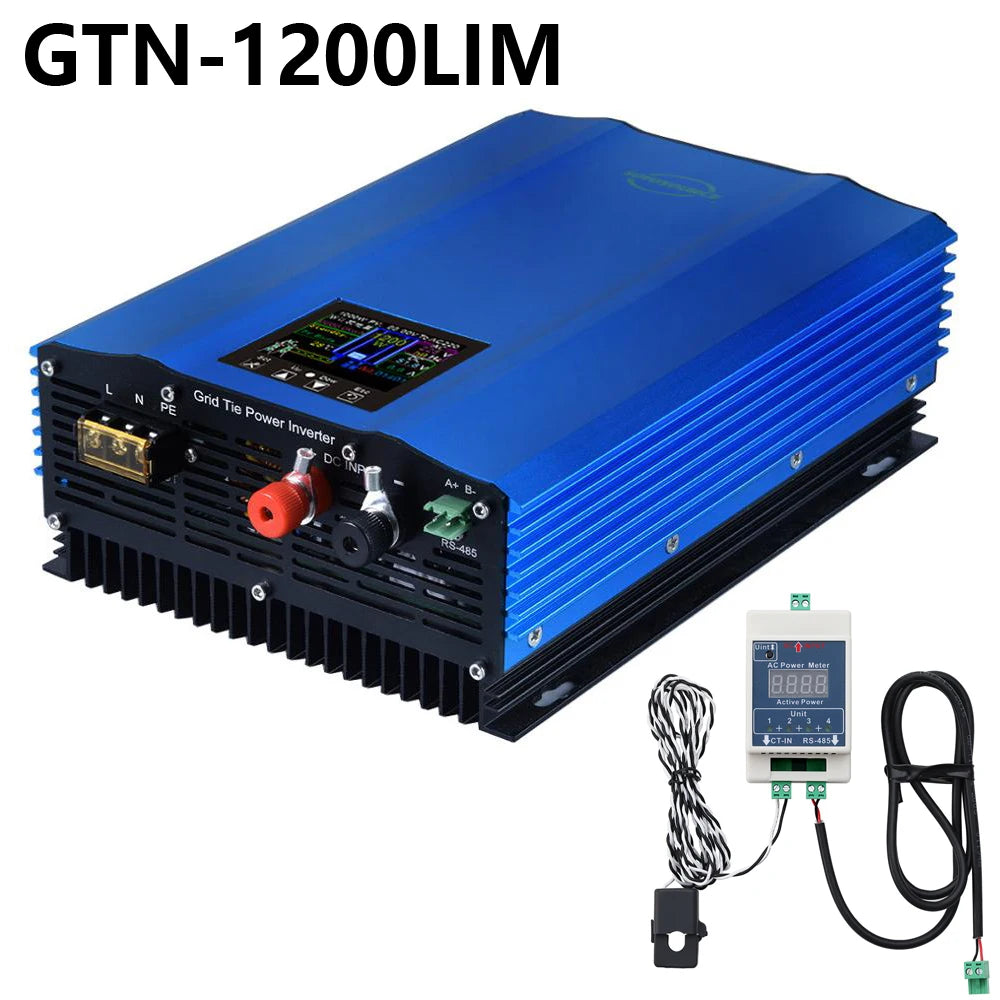

GTN1200LIM---------1200W grid tie inverter with AC Meter + clamp sensor;




1200w Grid Tie Inverter for Solar Panels or Battery


- working well with Battery

--with power acquisition meter(one acquisition meter can connect 5 inverters）

-- Limiter sensor clamp

--woking well with sloar panels, PV Input voltage Range (optional ):


PV Voc range:


1).55V-90V (for 48V battery or 60V Battery)

2).85V-130V (for 72V battery)

3).120V-180V(for 96V battery)

--Output Voltage : AC 110V 120V 220V 230V 240V

Why we produced the GRID TIE INVERTER WITH LIMITER ?


It is in response to the overwhelming clamor from our customers for a product that can control the amount of power that the

grid tie inverters (GTI) can generate so that the amount of excess power produced by the solar panels are reduced to

insignificant levels, if not eliminated --- because in some countries,the producer pays for the excess power it gives to the

distribution grid. This is because the electric power meters (the one provided by the electricity provider in the area) are not

aware of the direction of power flow. In other words it only adds even if power is exported to the grid, thus, the consumers will

be charged for power even if it is given to the grid, and this is the problem


This is the 2nd generation grid tie inverter with limiter.

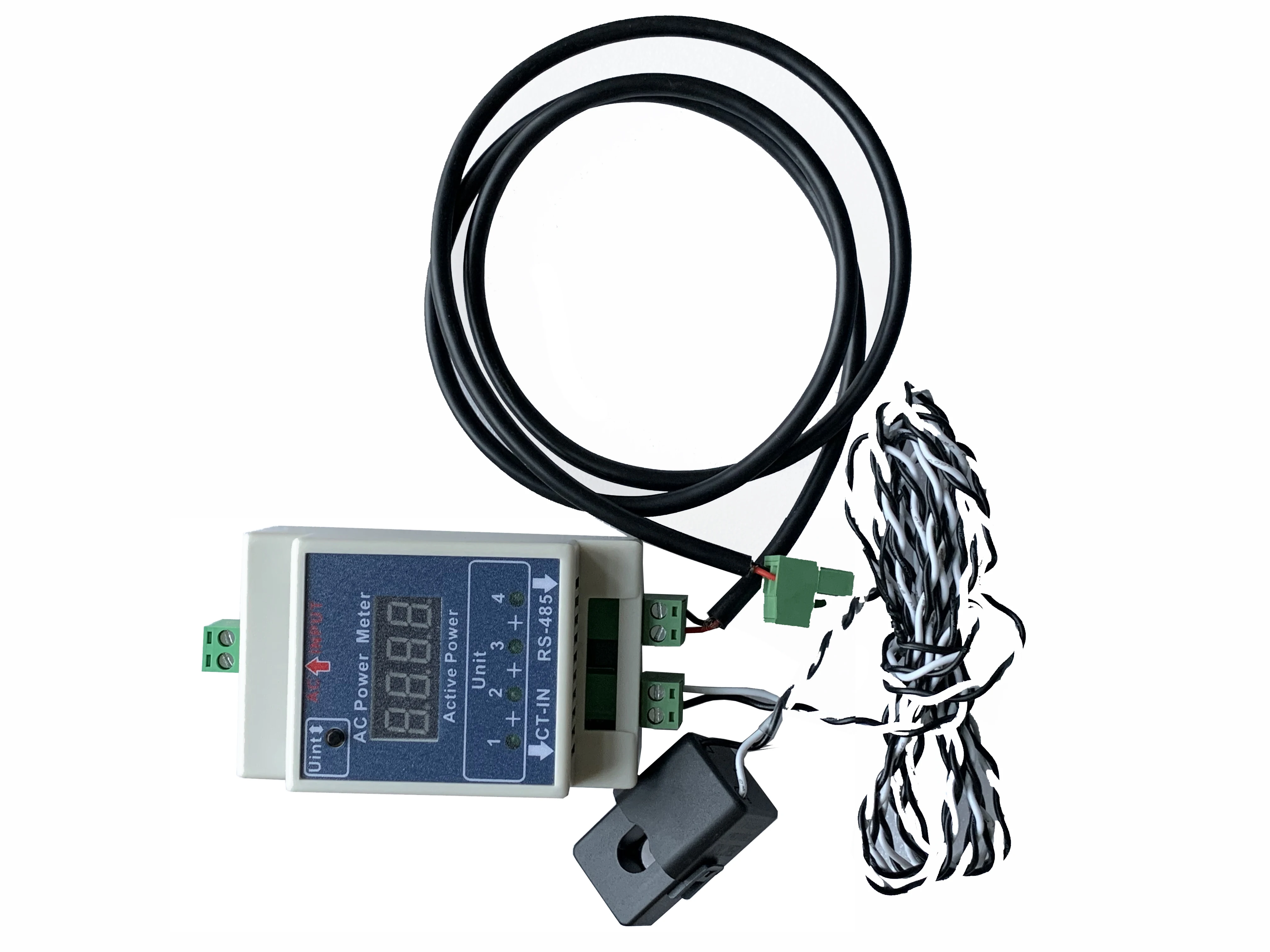

This is the second generation grid-connected inverter with limiter. With the second generation GTN-LIM, we added a acquisition

meter. The collecting meter collects the power consumption of the load through the sensor, and then transmits it to the inverter

through the RS-485 port. The inverter will output the corresponding power to the grid, which we call an external power acquisition.


How to connect the sensor?


1.conect the RS485 cable of the AC power acquisition meter to the 485 port of the inverter.


2.Plug the connection terminal of the transmitted current sensor into the port of the collector "CT-IN" (no +-)


3.Connect the AC power supply port "AC-IN" of the collector to the same AC power supply for the load. After the connection,


it will light up.

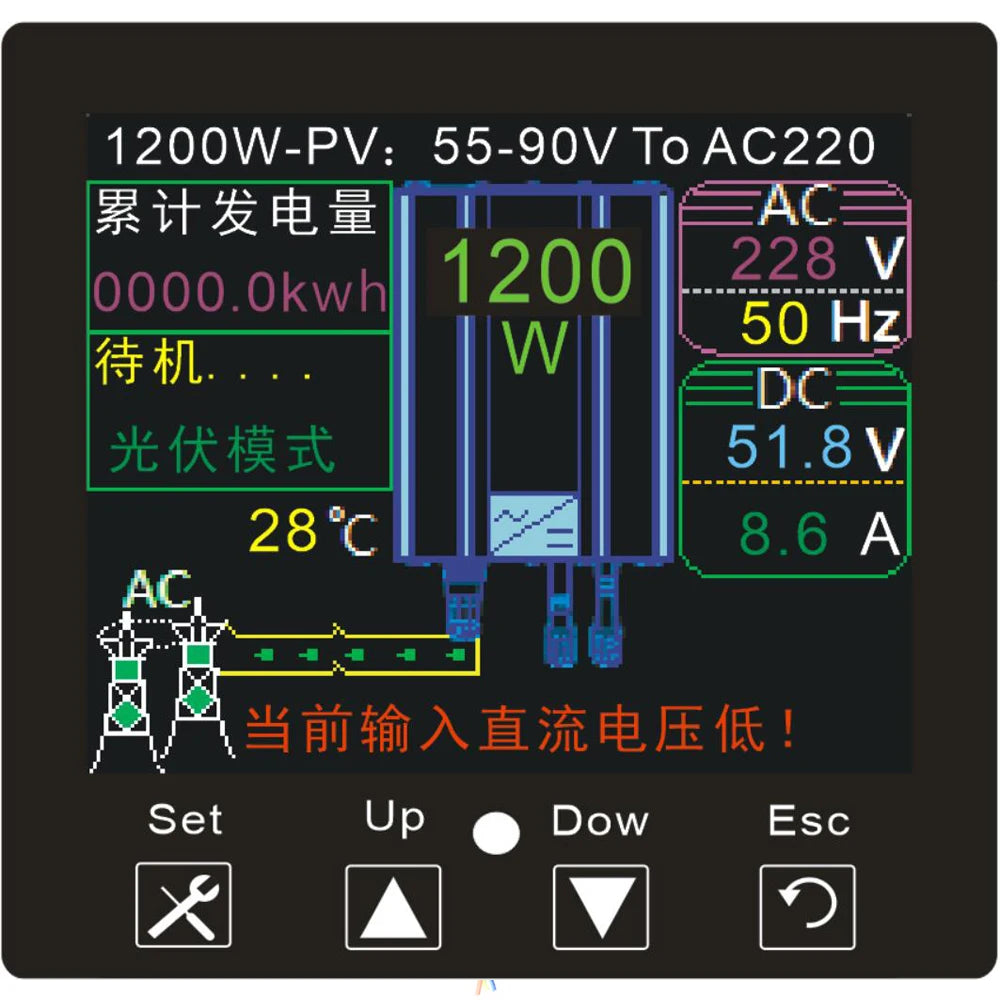

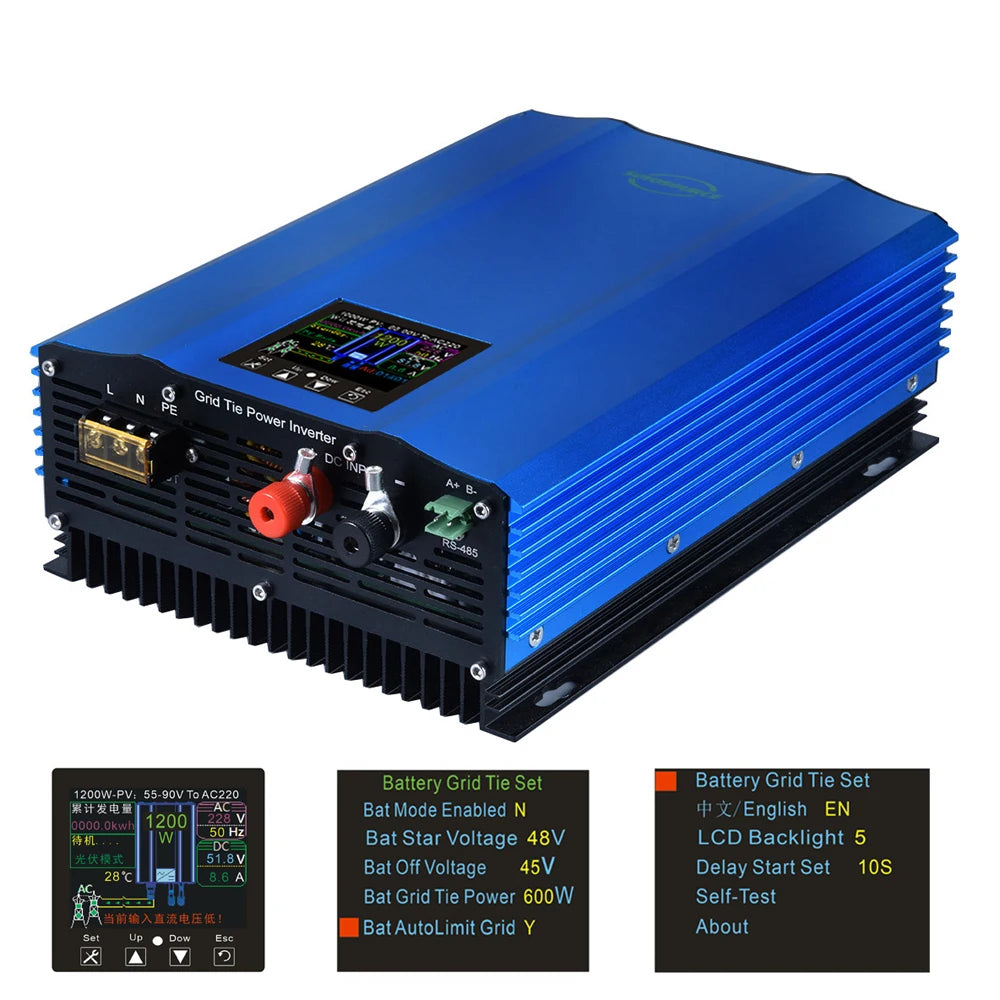

4.In the inverter LCD, enter the "battery grid connection", through the SET {Bat AutoLimit Grid} for Y


5.Connect the inverter to AC power first, then connect the battery, the inverter will automatically output the same power as the power


detected by the collector.Therefore, the inverter will not have excess electricity to be sent to the grid (ie: automatic limiter function)


Specifications:

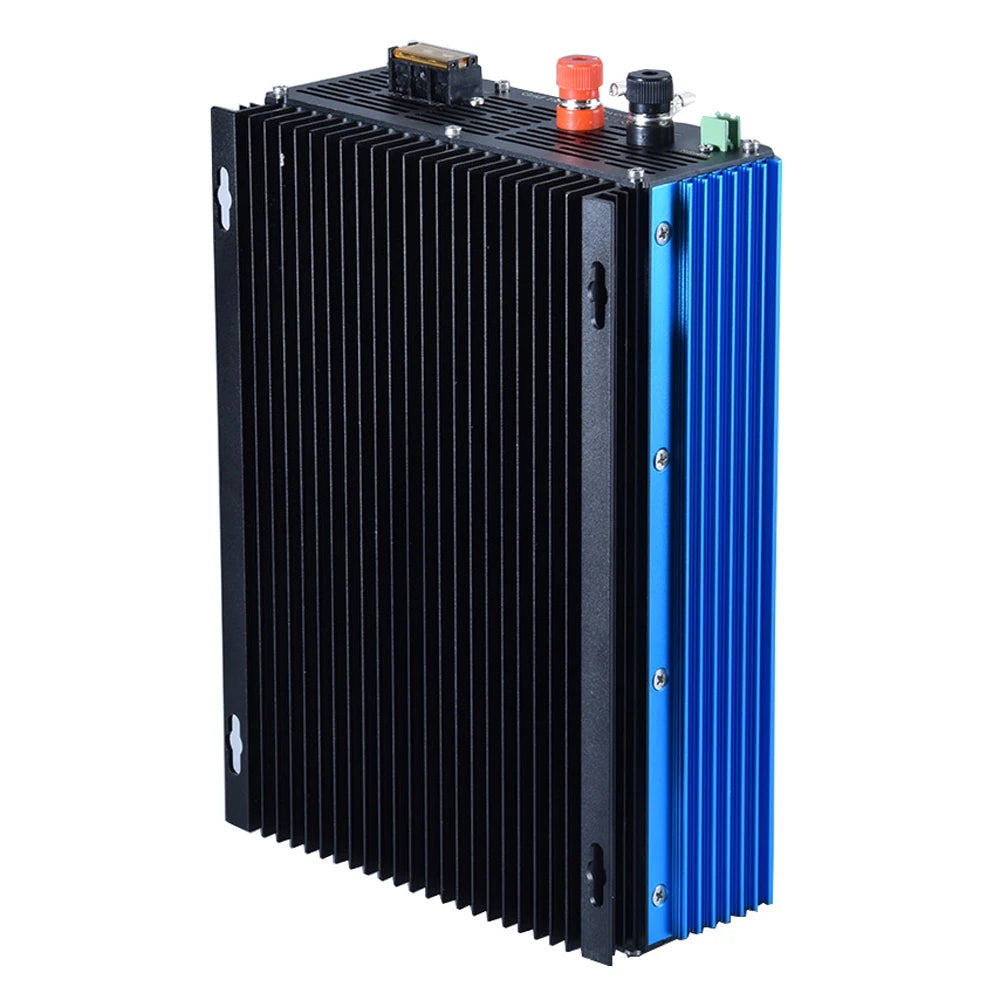

Product photos:





packing List

A. Solar Grid Inverter with Limiter-----1unit

B.AC power acquisition meter --------1unit

C. Limiter sensor clamp ---------------1pcs

D. AC cable 50cm----------------------1pcs

E. English Manual----------------------1Pcs
